Quick Guide

Every function and where to find it.

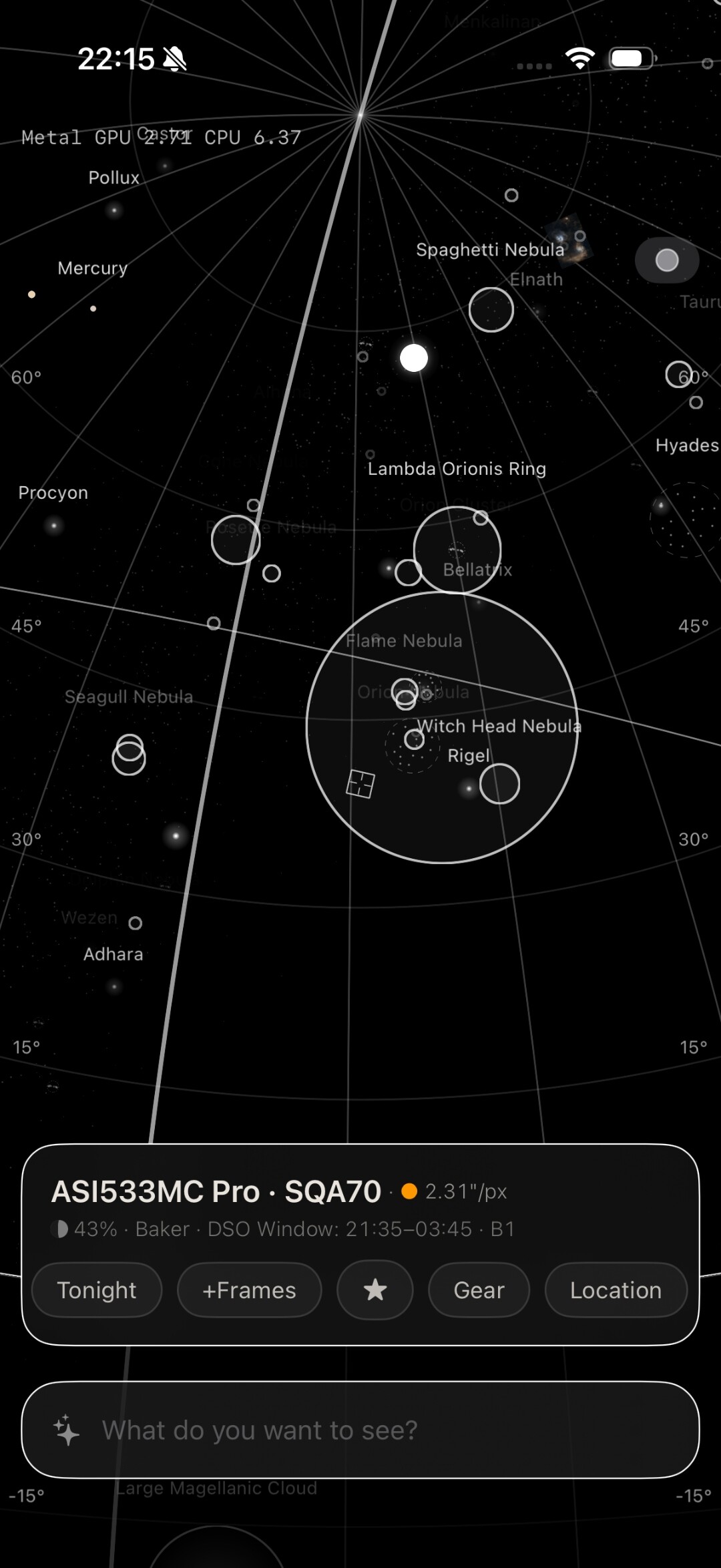

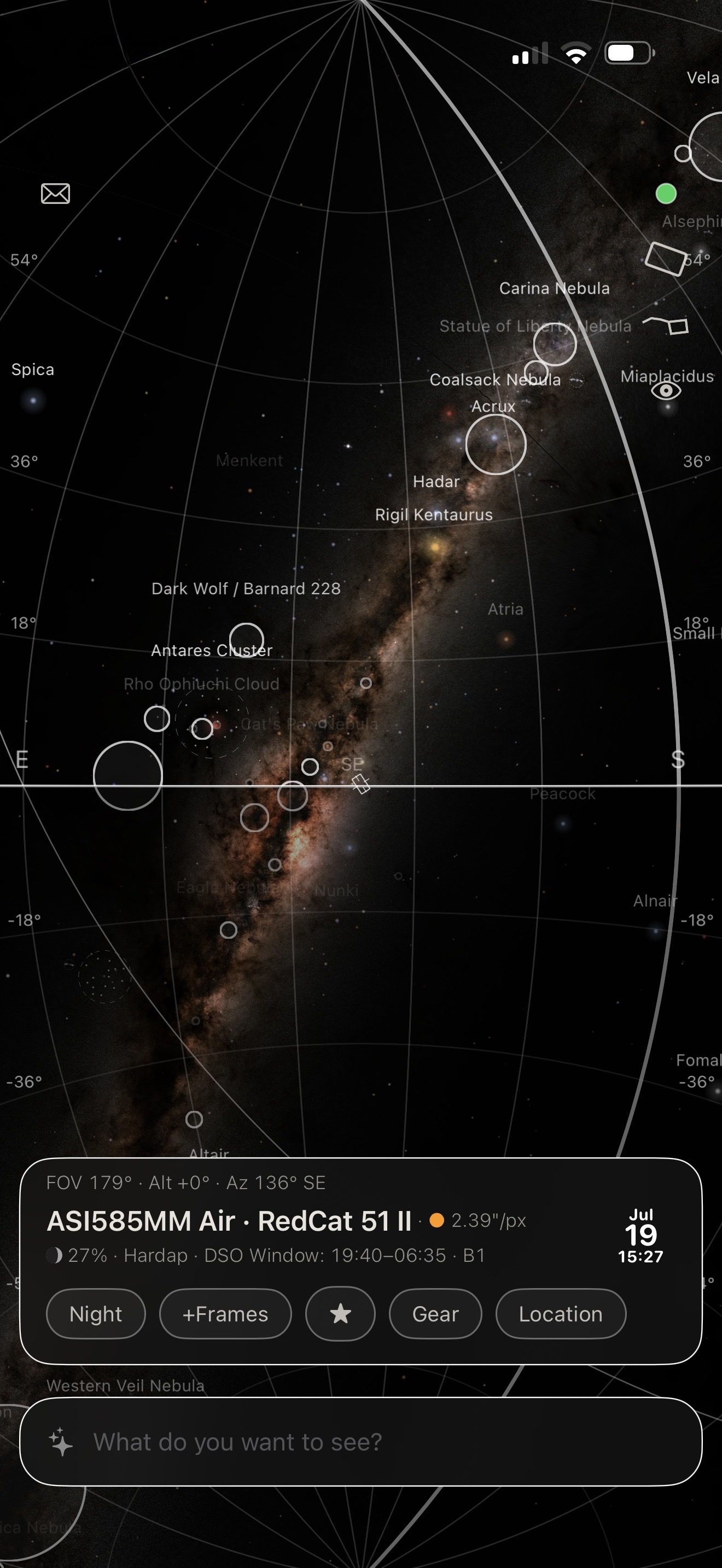

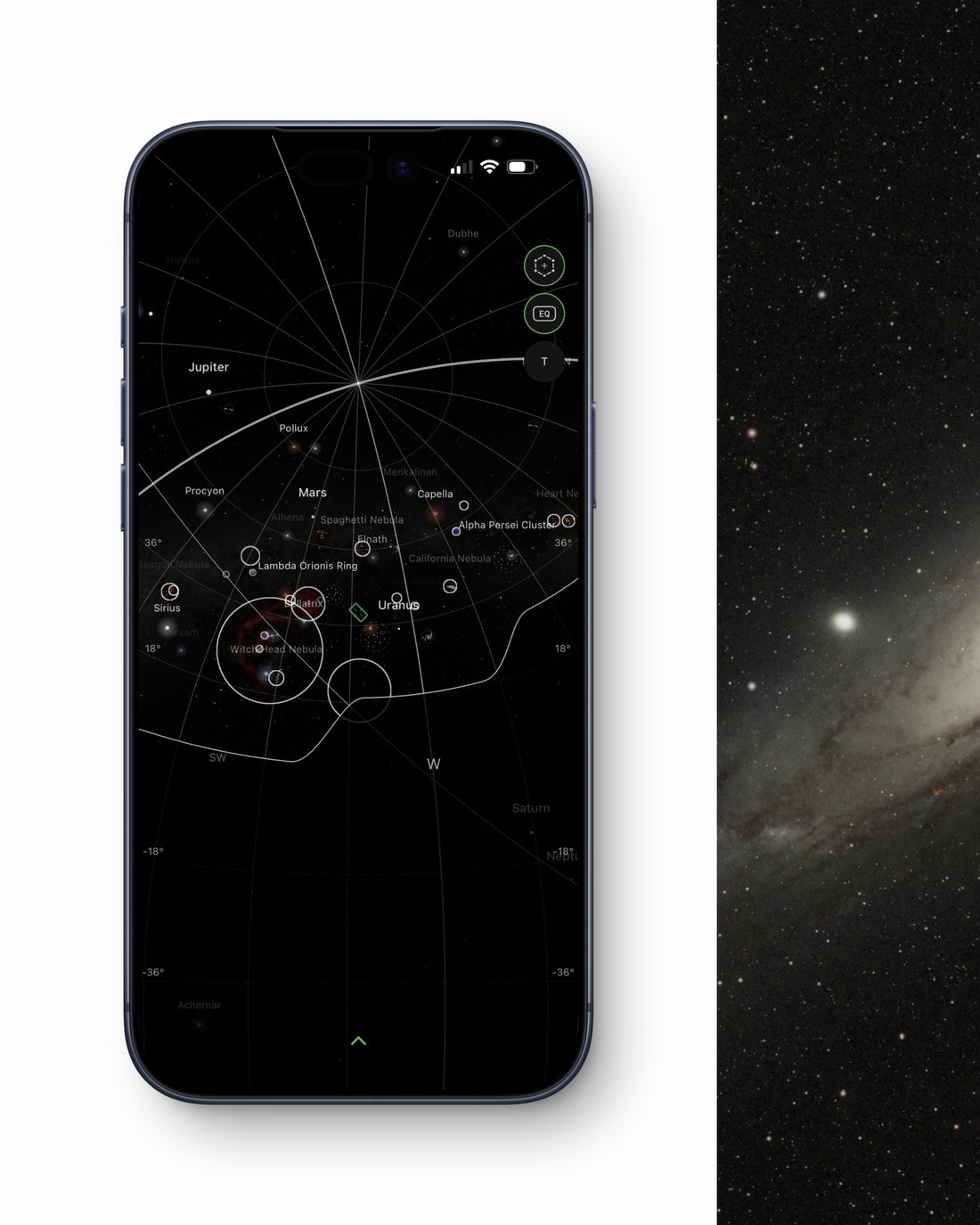

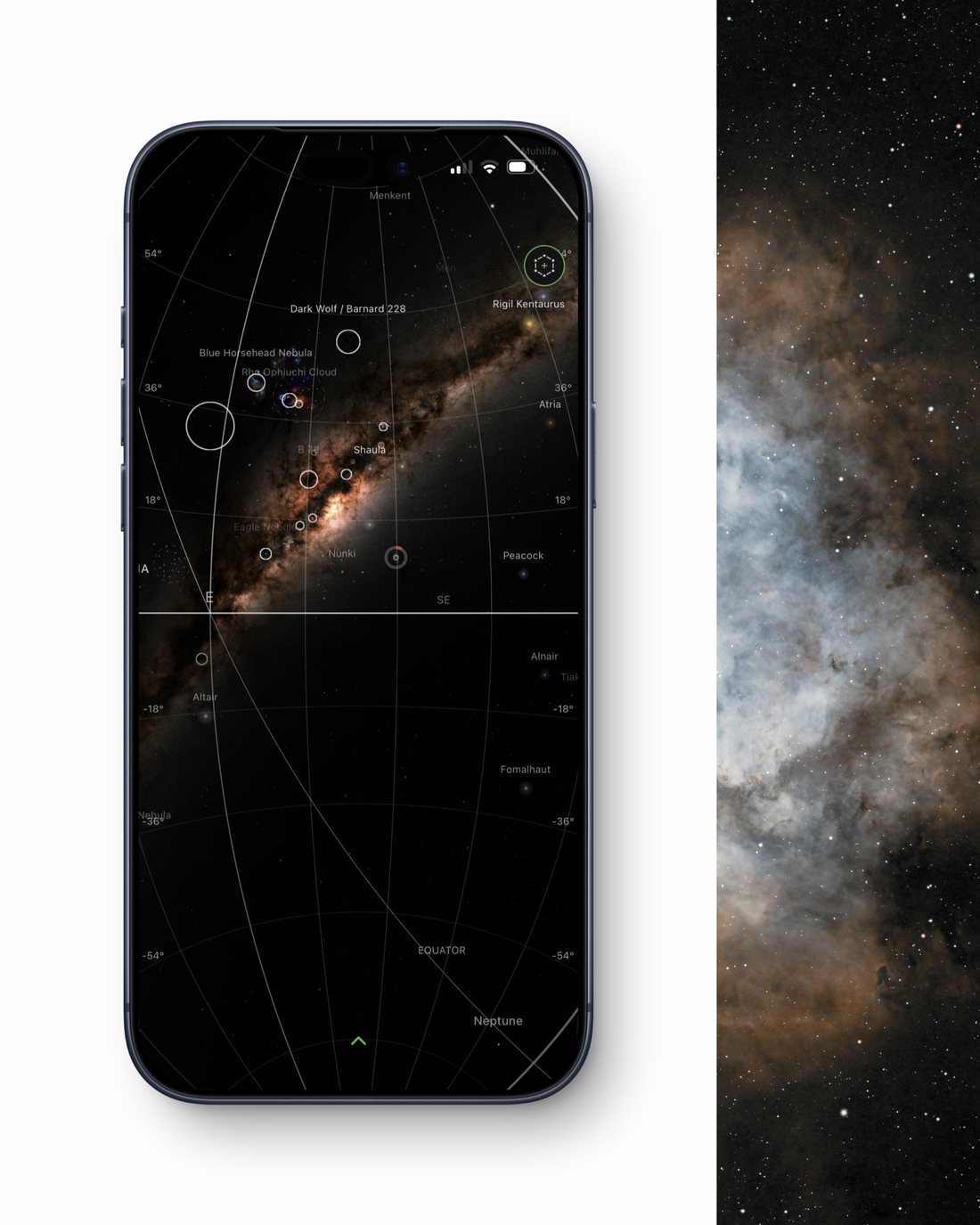

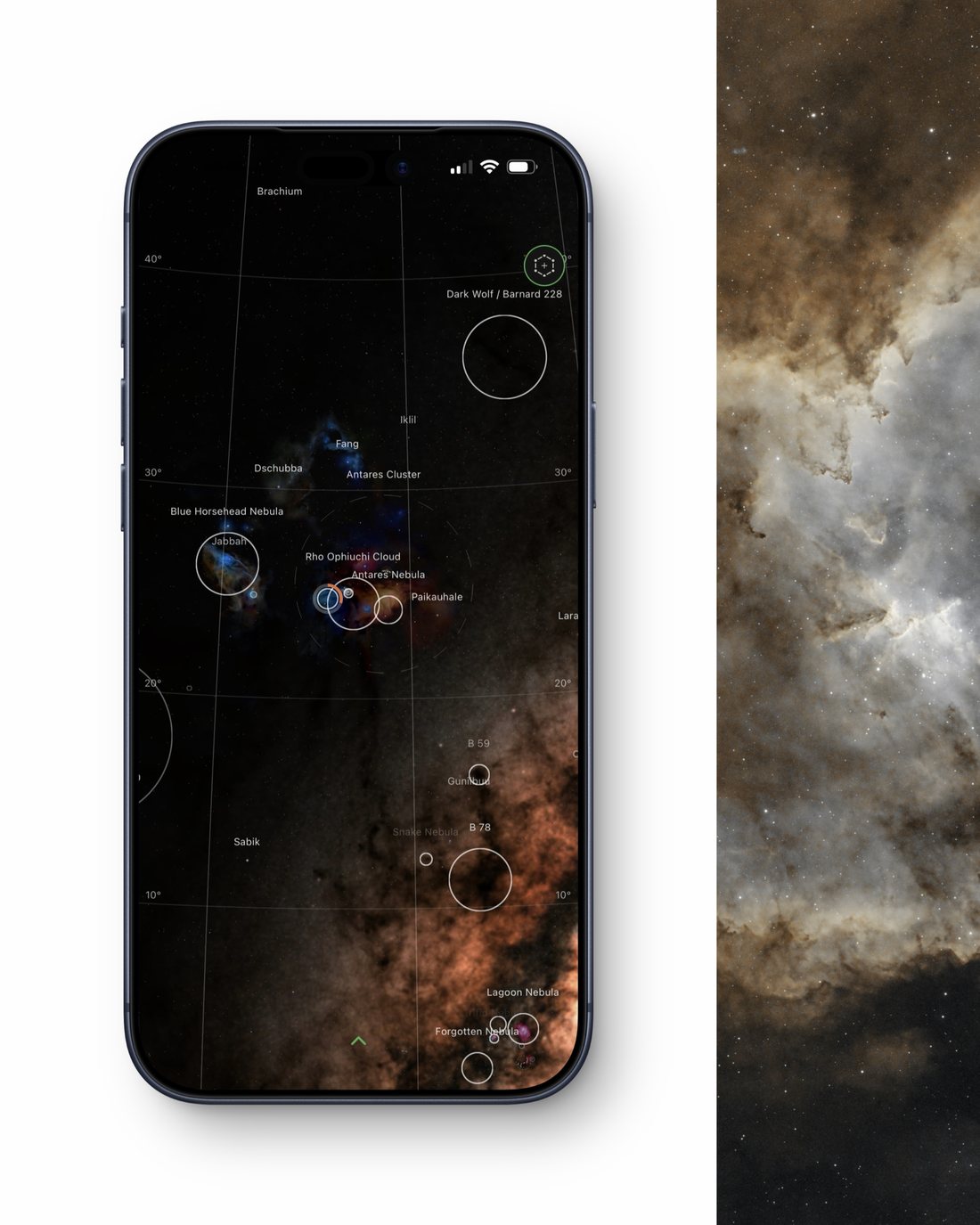

Atlas

• Pan: one finger. Zoom: pinch, down to a 0.02° field — fainter stars appear as you zoom in (to mag 14).
• Tap an object (star, DSO, planet, asteroid, comet, satellite): opens its card. Tap empty sky: closes it.
• The atlas shows: 8,797 deep-sky objects · ~12 million stars · Sun, Moon, planets · 14 asteroids · ~900 comets · ~16,000 satellites moving live (selected: orbit line) · JWST · Milky Way · constellation figures and IAU borders · real astrophotos — plus your own plate-solved images (long-press to remove).
• Galaxies are drawn as ellipses with their real orientation.

Toggle button (hexagon, top right)

Opens a capsule with:

• Framing — rotate the FOV frame, set a mosaic (up to 4×4, 10–30% overlap), zoom lenses get a focal-length slider. Long-press: rotation back to 0°. Only with a camera setup.
• Horizon — flat horizon or the location's 8-sector profile (each sector 0–90°), edited in the card. Affects scoring, windows and plots.
• Layers — star-magnitude slider (1–14) · Bortle slider (preview 1–9, reset arrow) · switches: DSO images, Milky Way, my photos, project rings, constellations, constellation borders.
• AR — atlas follows the phone, camera as background. Red dot exits.
• Night vision — whole app red, persists.

With a smart telescope, two extra buttons appear next to the capsule: EQ (wedge mode) and T/W (tele/wide lens).

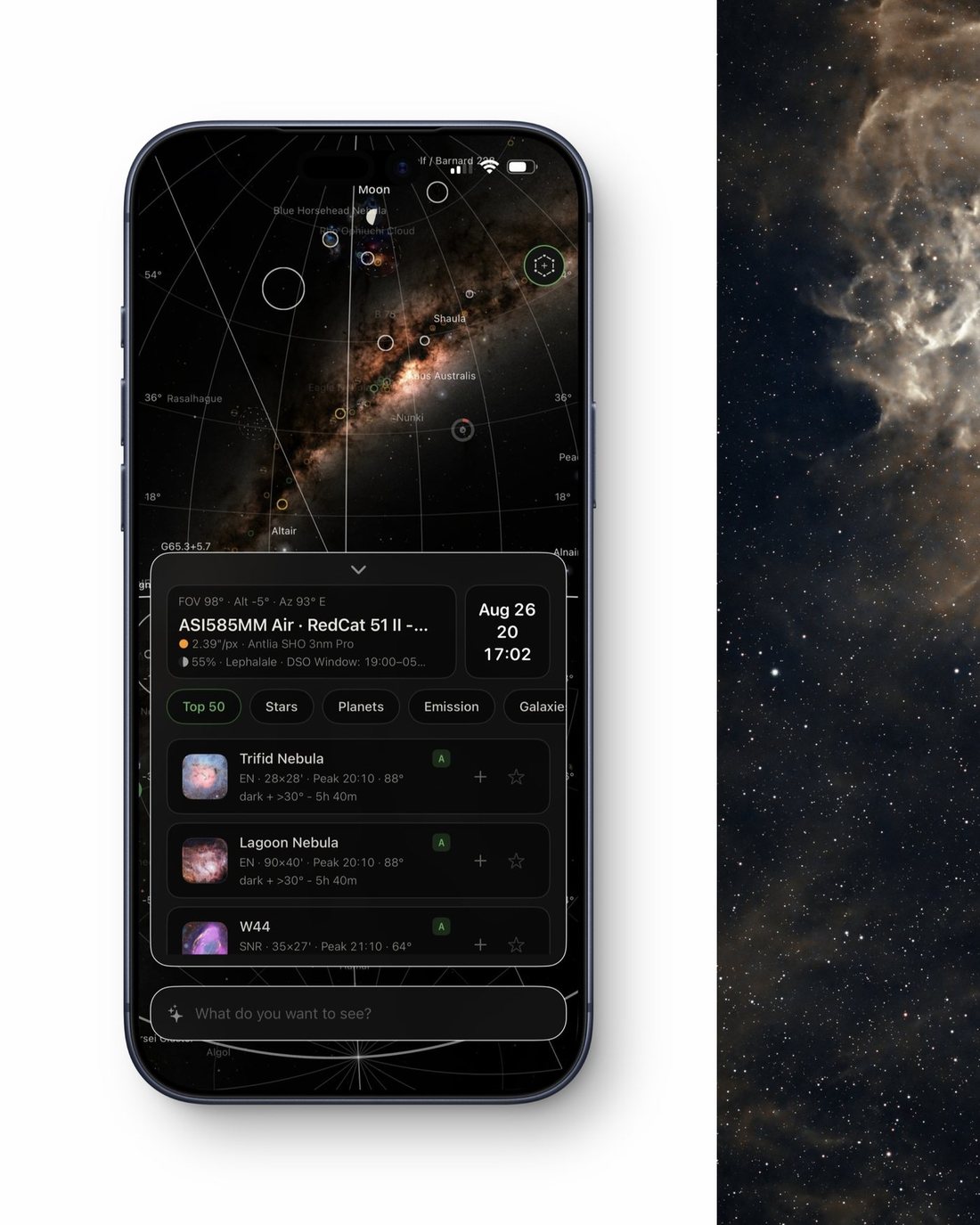

Main card (bottom)

• Status line — current view: FOV 2.4° · Alt +34° · Az 156° SE.
• Setup pill — active setup, sampling, filters, date/moon/site/Bortle. Tap: switch setups. Below: switch locations.
• Calendar pill — tap: calendar. Red lines: you're planning a time other than right now.
• Tabs — Night · +Frames · ★ · Gear · Location.
• Input field — search, Astro Buddy, gear, plate solving (see below).
• Chevron — collapses everything down to atlas-only. Selection stays on the sky.

Night

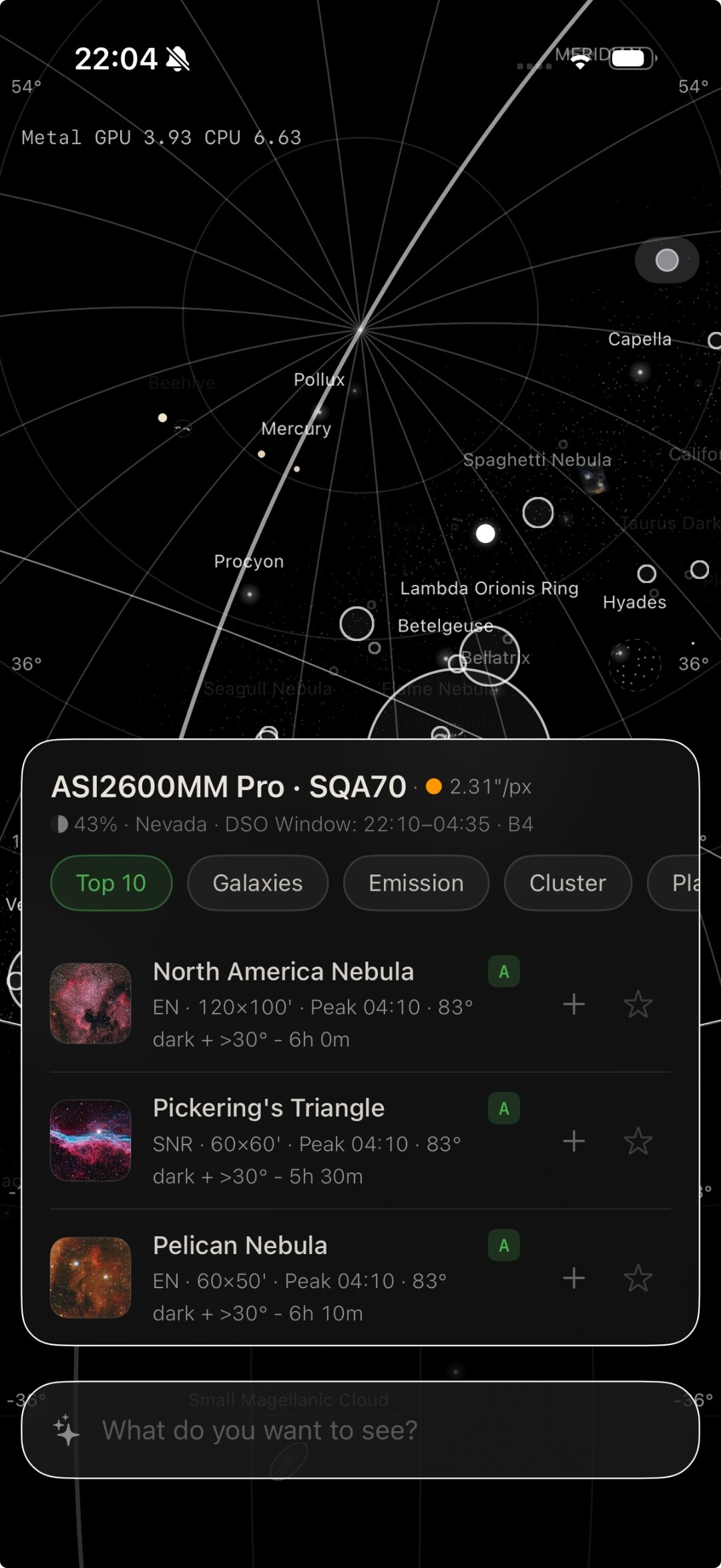

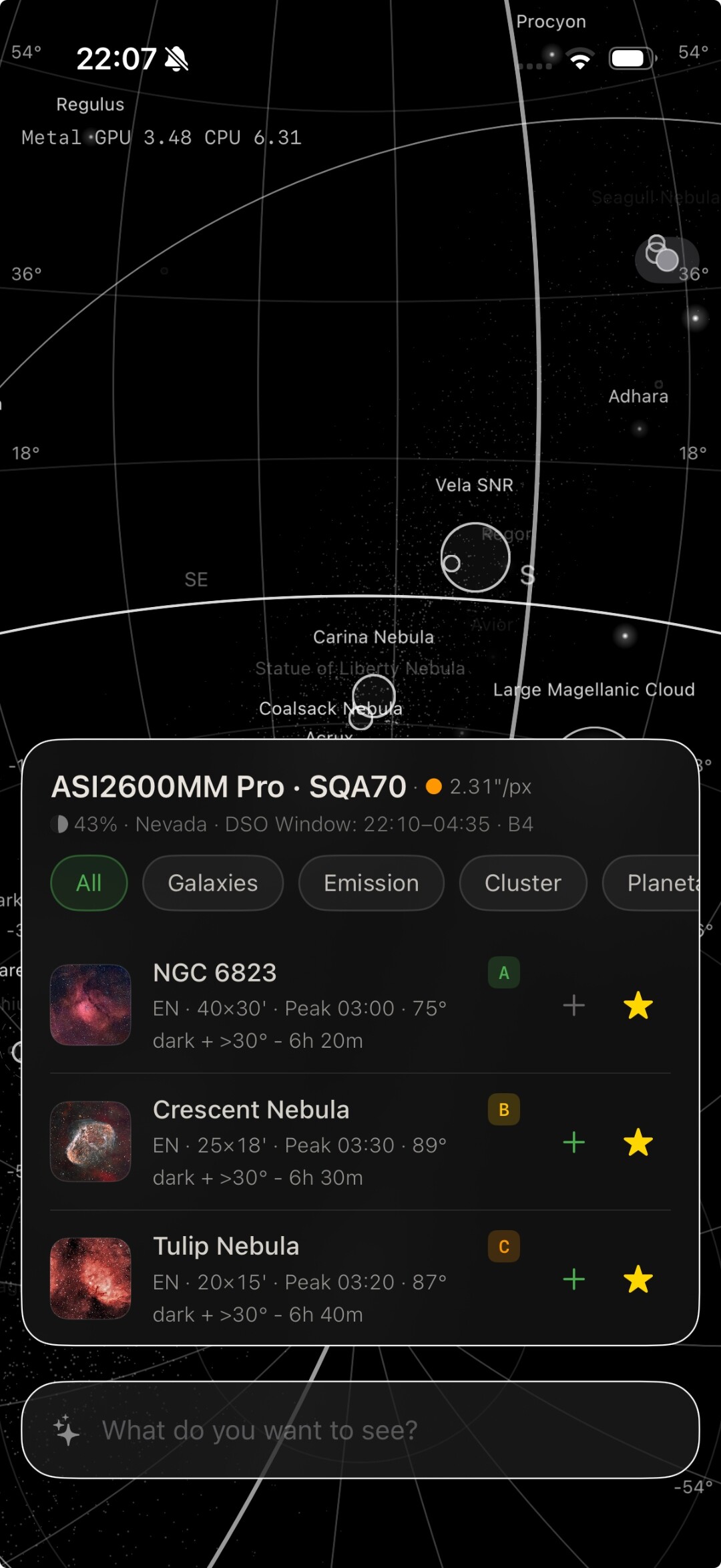

• Top 50 — tonight's 50 best DSOs for your setup and location. Per row: grade A–E, type, size, peak, usable dark window. Score = altitude + moon + horizon profile + FOV fit.
• Type pills — Galaxies, Emission, Cluster, Planetary, Supernova, Dark, Reflection. Combinable, drag to reorder.
• Planets — visibility windows and verdicts; twilight counts, since planets need no full darkness.
• Stars — sub-pills All · Variable · Double · Carbon. Variables: state and next maximum/minimum. Doubles: separation, PA, companion — and whether your telescope splits the pair.

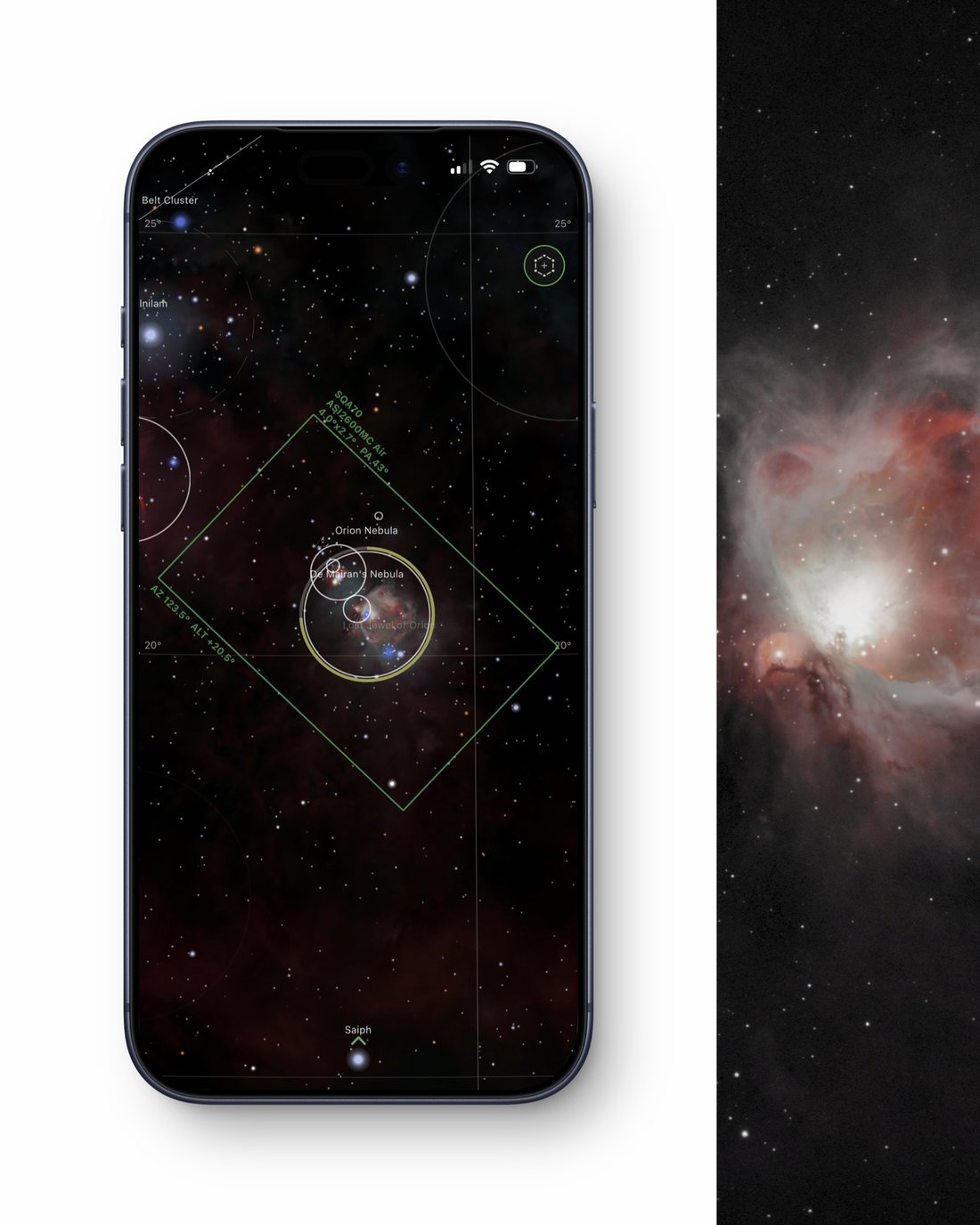

+Frames

Projects. Plus button on a target creates one (setup is snapshotted). If the target already has a project, the plus opens a menu: open project, new project with the current setup, delete. One target can hold several projects, each with its own equipment.

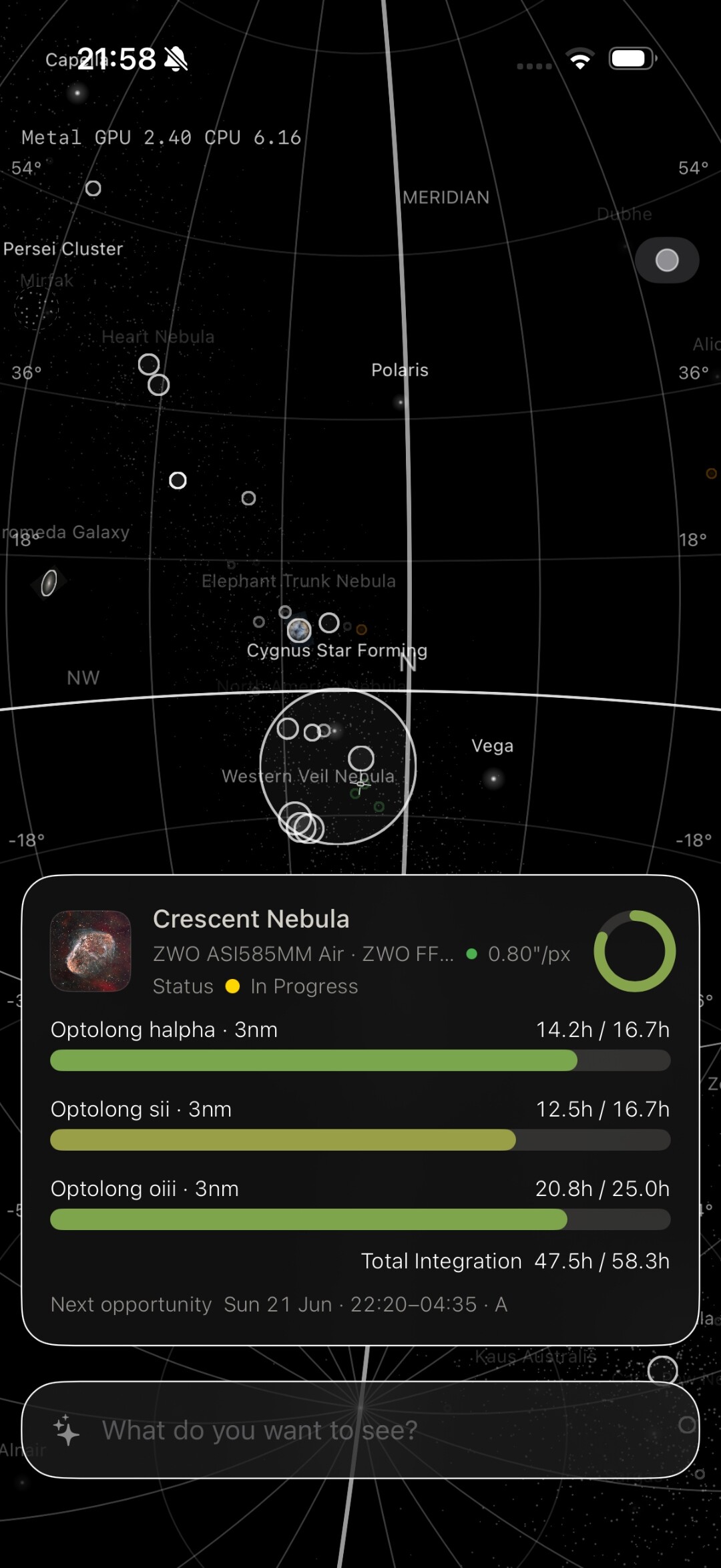

• DSO projects — one row per filter. Enter exposure per sub, target subs, gain (HCG suggested if the sensor is known), captured subs per night. Shows integration, percent, remainder.

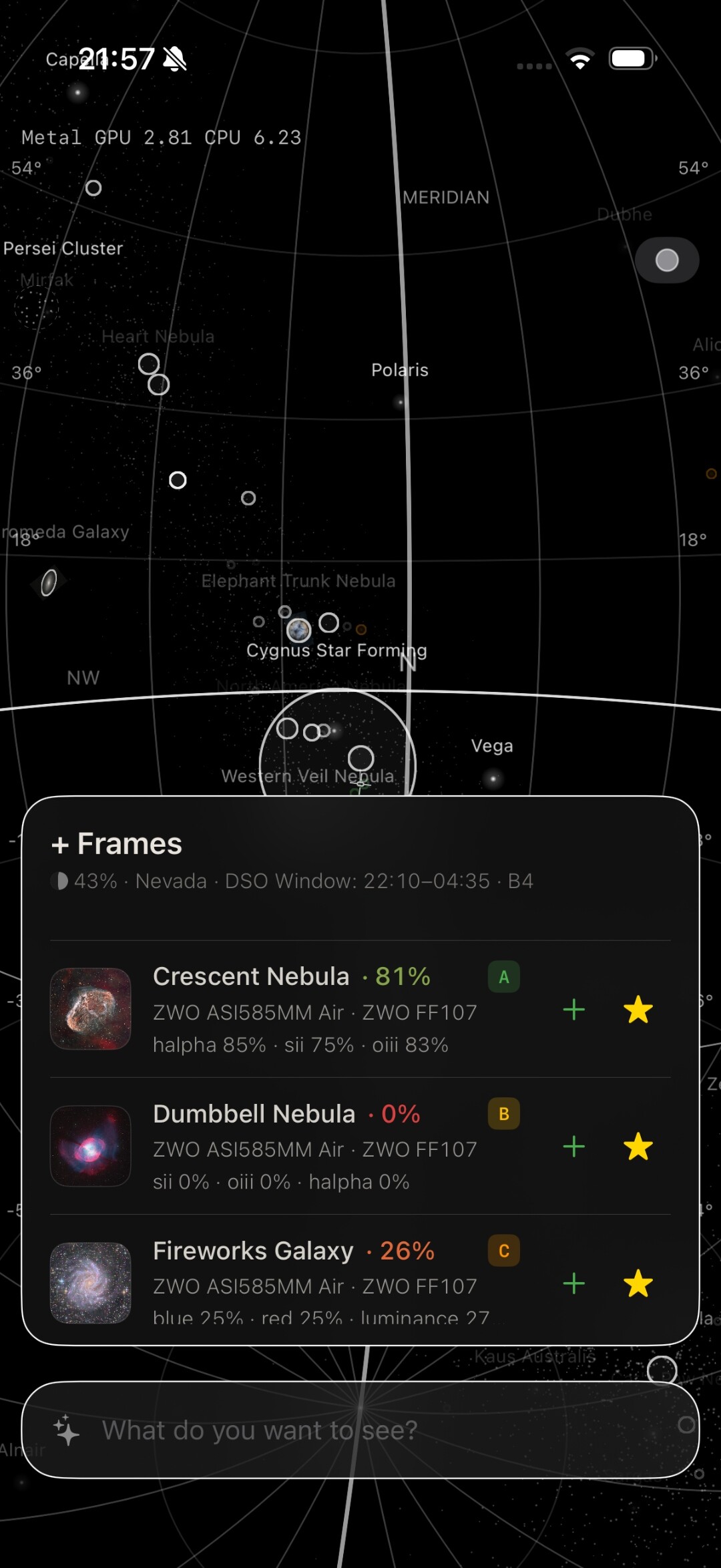

• List — one row per project, sorted by tonight's score computed with each project's own equipment. Ring on the target = summed progress of its projects. Finished projects sit in a collapsed group at the bottom.
• PA & Position — one row, one edit mode: rotate, set the mosaic, pan to the exact image center — Save stores all of it. Flying to the project restores it. Locked once subs are logged. Export plan: ASIAIR format to clipboard, one line per mosaic pane.
• Mark finished — archive a project any time (the card offers it once the target is reached); reopen it from the Finished group whenever you want more hours.
• Star projects — observation log: seeing (Antoniadi), limiting magnitude, SQM, notes, up to 10 photos. Export: OpenAstronomyLog XML (+ ZIP).
• Moon/planet projects — info cards: ephemeris, disk trend, phase, ring tilt, Moon age, next opportunity (opposition, elongation, terminator window).

★

Favorites — star button on any row or card. Same rows and filters as Night.

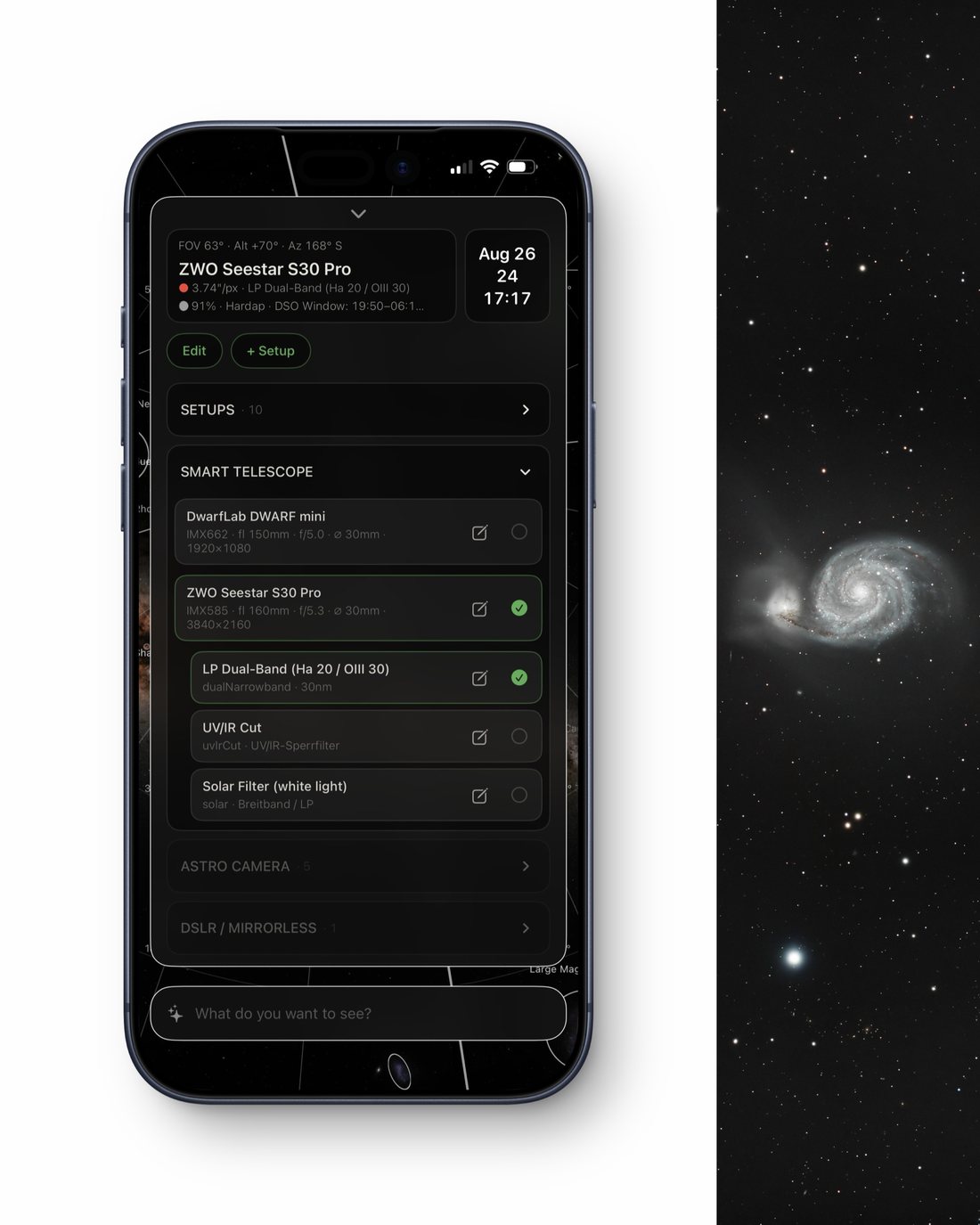

Gear

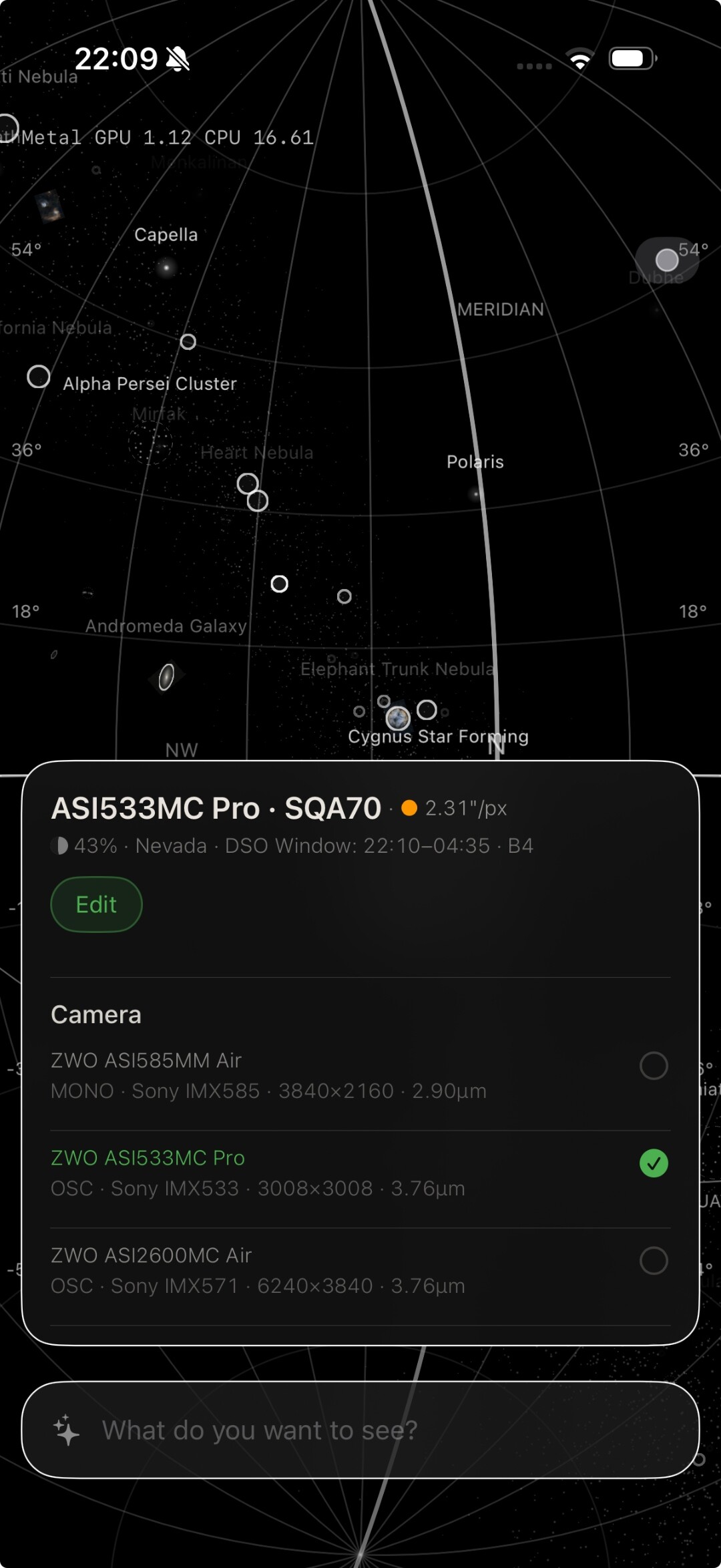

• Sections: astro cameras, planetary cameras, DSLR/mirrorless, telescopes, lenses, mounts, filters (set groups), reducers, flatteners, Barlows, eyepieces, guiding, filter wheels, smart telescopes.
• Setups: save any combination, apply with one tap (also from the main card). An eyepiece makes the setup visual (FOV becomes a circle); a smart telescope activates alone, with its built-in filters.
• Every item is editable field by field. Fastest way to add gear: type it in the chat ("I have a ZWO ASI2600MC") — specs appear, one tap saves.

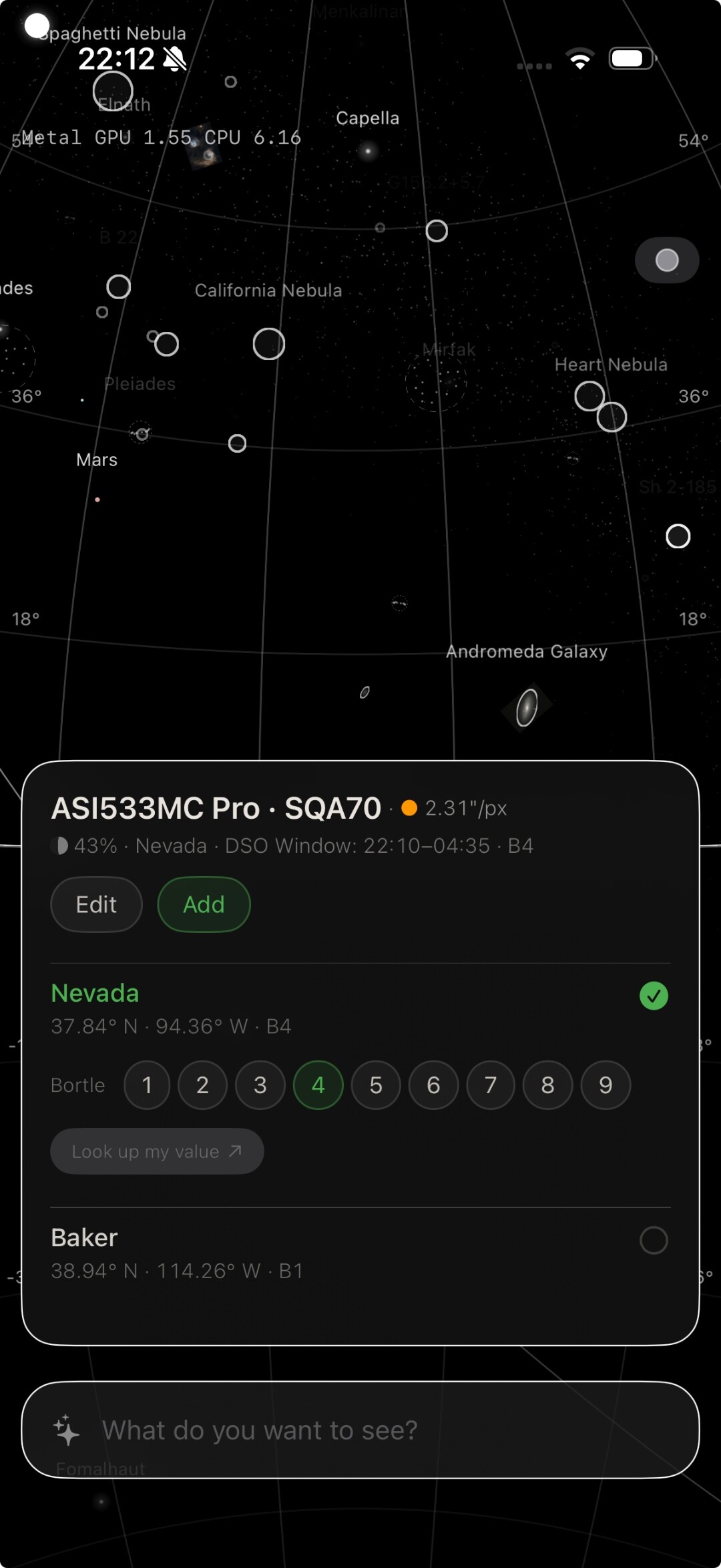

Location

• GPS plus any number of saved sites (city or place search). Per site: Bortle class 1–9 (with lookup link) and the 8-sector horizon profile.
• All windows, twilight times and scores use the active site. Both hemispheres.
• Credits row at the bottom: all data sources and photo licenses.

Calendar

• Month view: moon phase and illumination under every day, dots for events and notes. Swipe vertically for other months.
• Tap a day = plan that night. Atlas, rankings and cards compute for that date; reset arrow returns to now.
• Event list, 35 days ahead: eclipses, meteor showers, comet perihelia, dark nights.
• Search all events up to 2050: eclipses, moon phases, meteor showers, oppositions, elongations, conjunctions, perihelia.
• Plus button: add your own note to any day.

Object cards

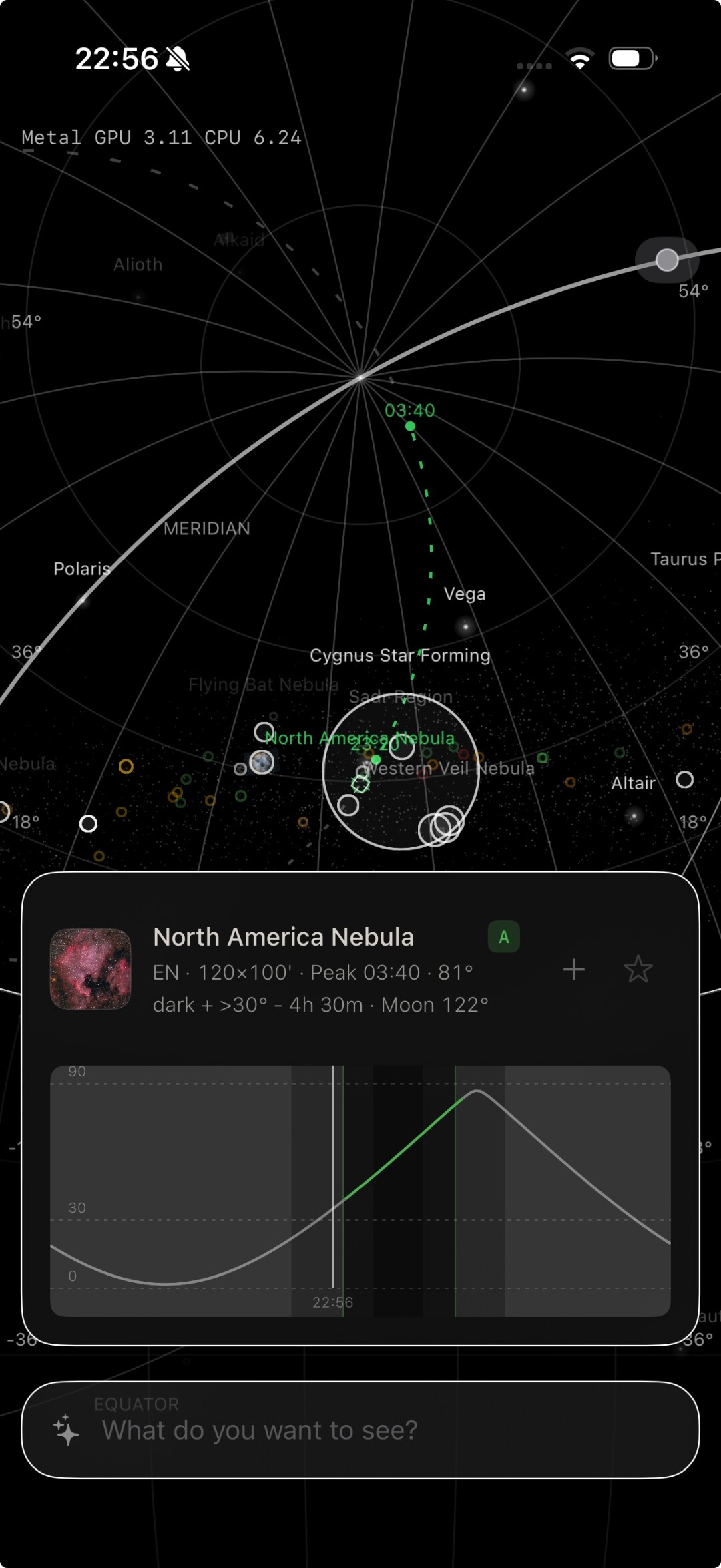

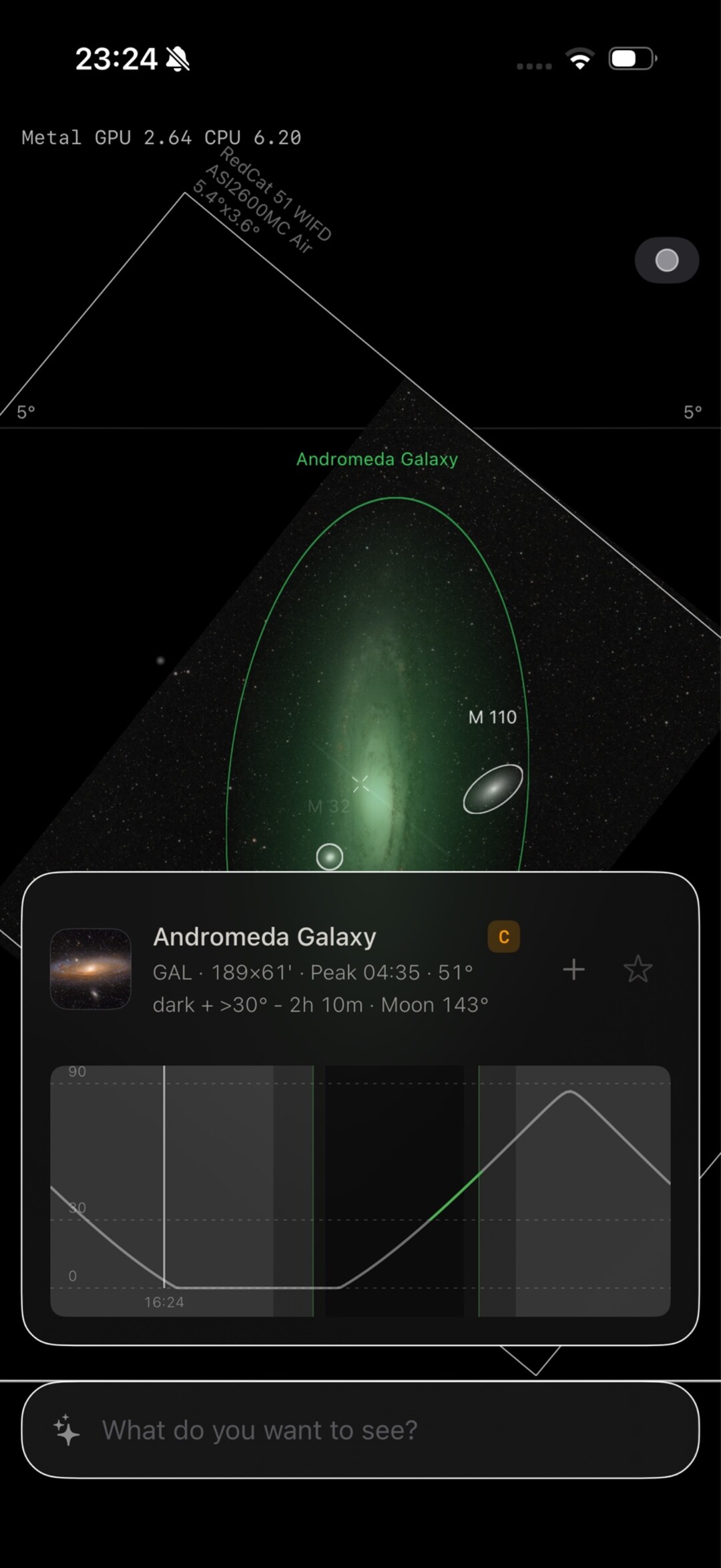

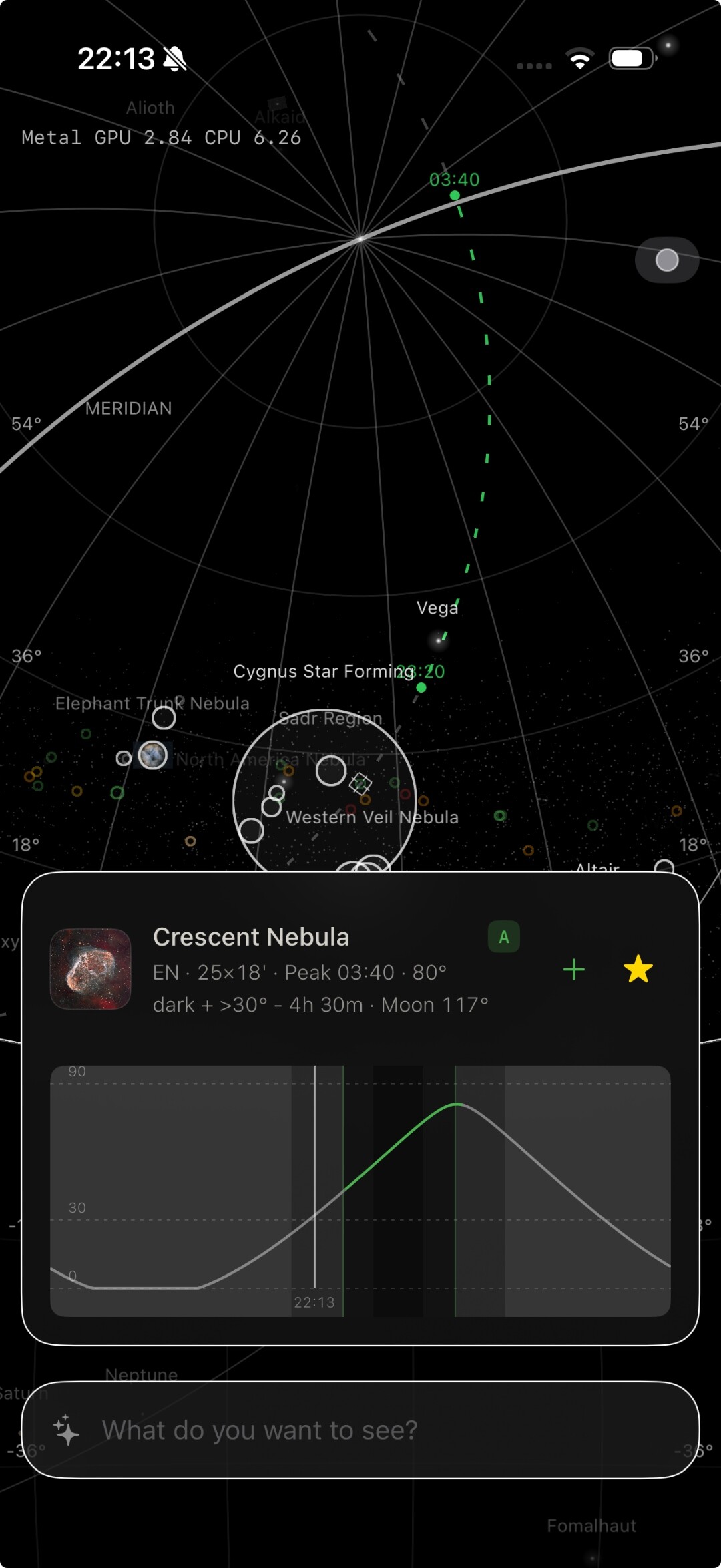

• DSO — data, grade, dark window, moon separation, 24-hour altitude plot (green = usable). Drag the plot to scrub time — the atlas follows. Arrows: next/previous night.
• Star — designation, spectral class, distance. Variables: type, period, next event with time. Doubles: split verdict first, then separation/PA/companion.
• Sun/Moon/planets — rise/set, altitude plot, distance, disk size, phase, observing hint.
• Asteroids/comets — distances, motion, perihelion date; comet brightness marked as estimate.
• Satellites — altitude, speed, sunlit or in shadow, next visible pass with times.

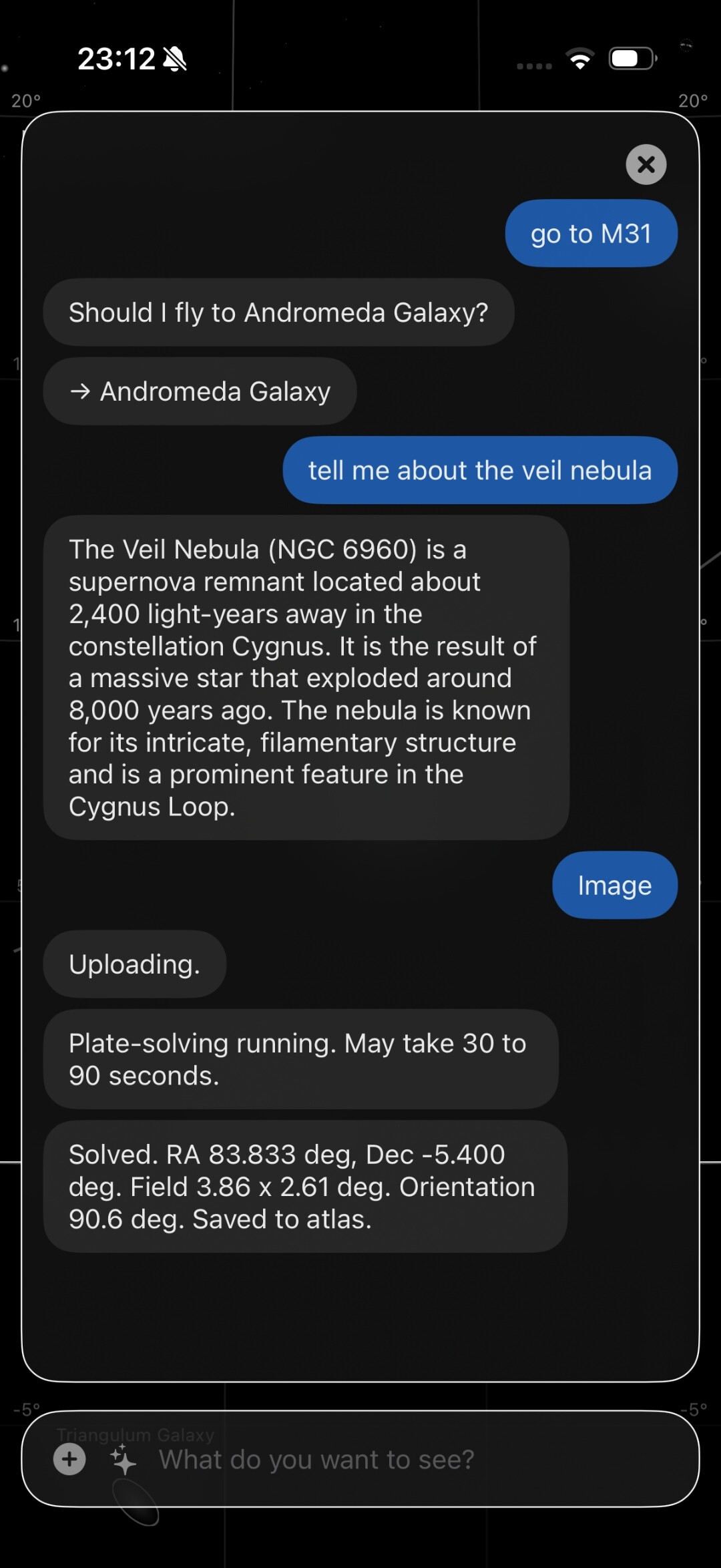

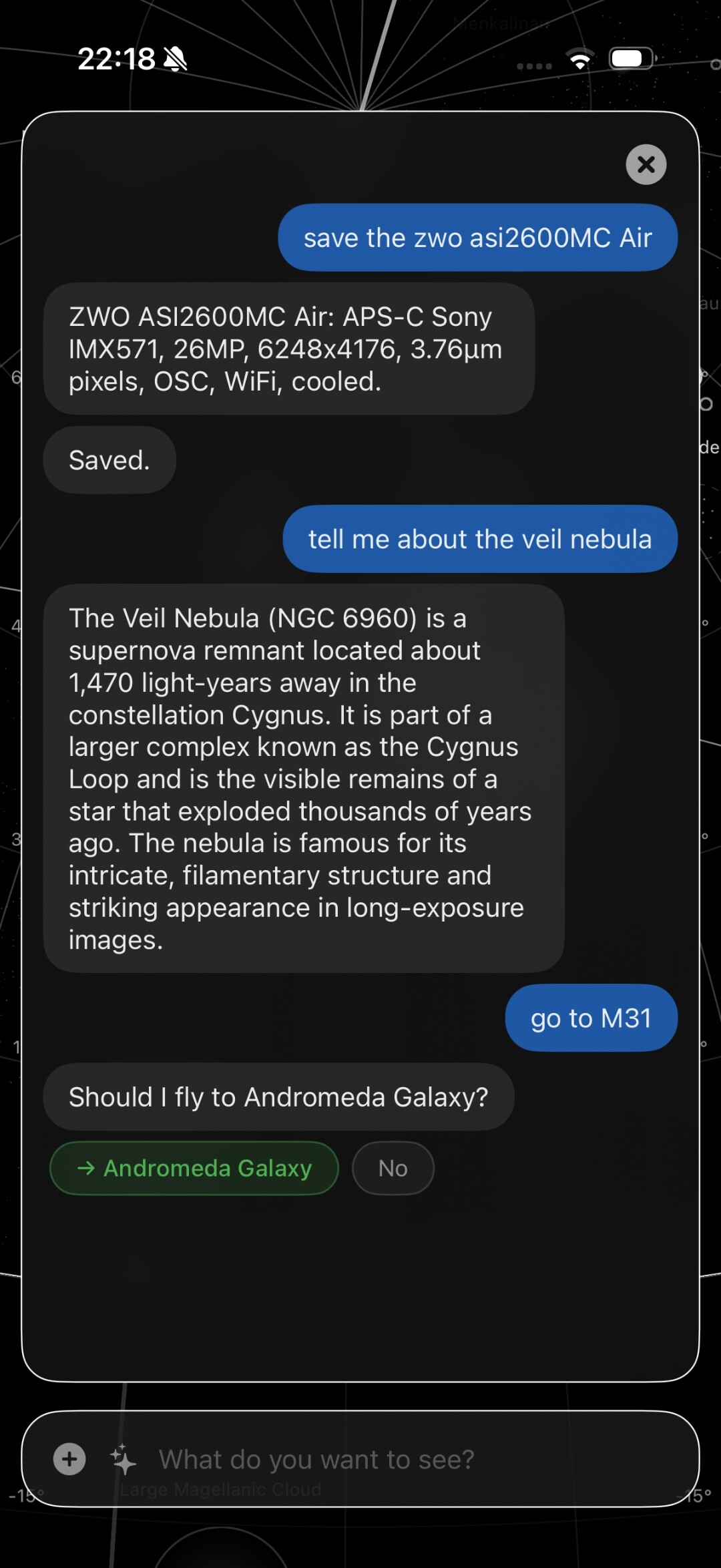

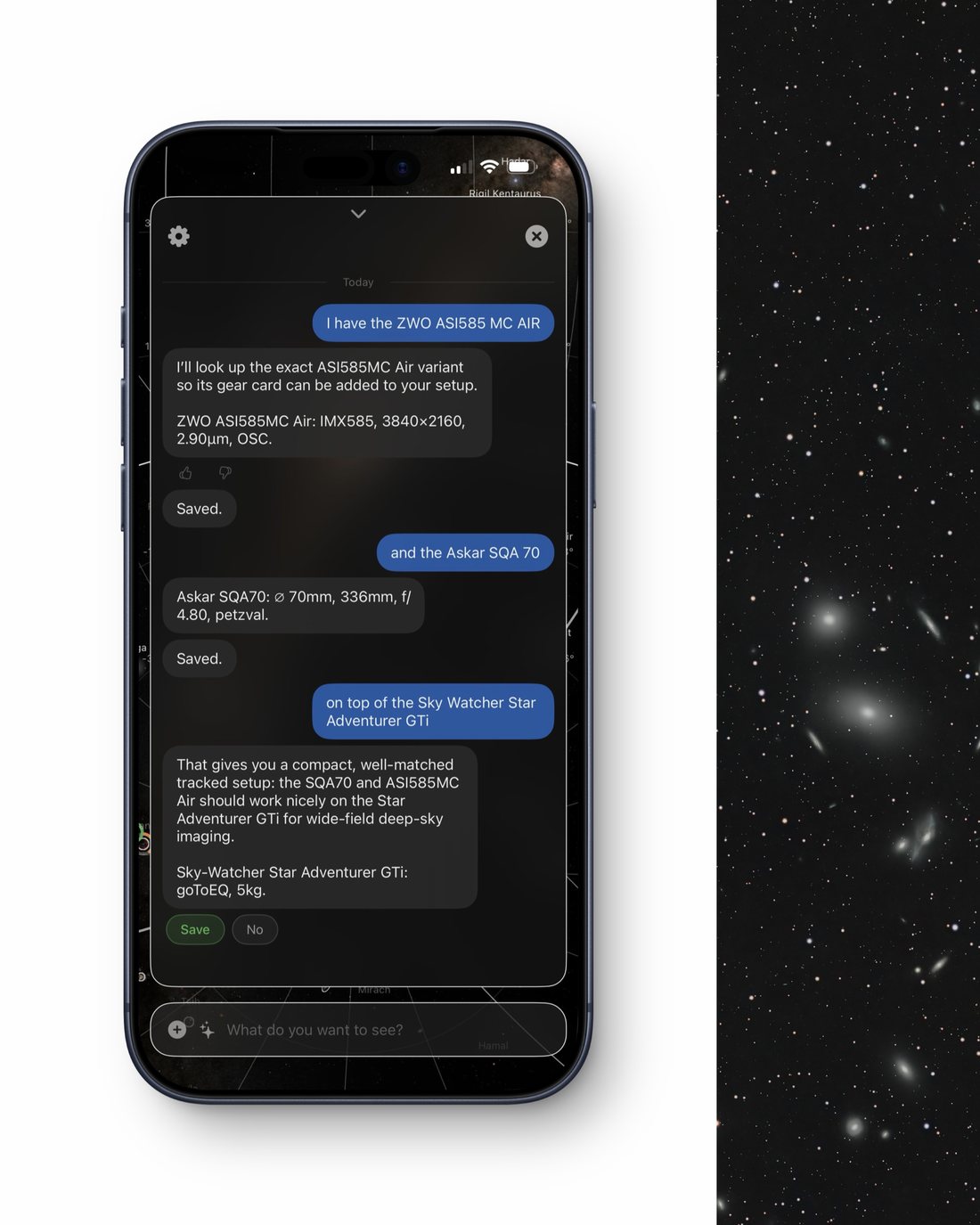

Input field & Astro Buddy

• Exact name → direct flight, no AI: "M 31", "Messier 31", "wolfs cave", "ISS", a NORAD number, "gaia dr3 <number>". Everything else goes to the Astro Buddy.
• Ask: object explanations, visibility with computed times, planning with conditions ("what's in the north above 40° after 1 am?").
• Exposure & filter advice — computed from your sensor, sky and moon; filter suggestions only from filters you own that fit your camera type (mono vs. color).
• Add gear: name a device, check the spec card, tap save.

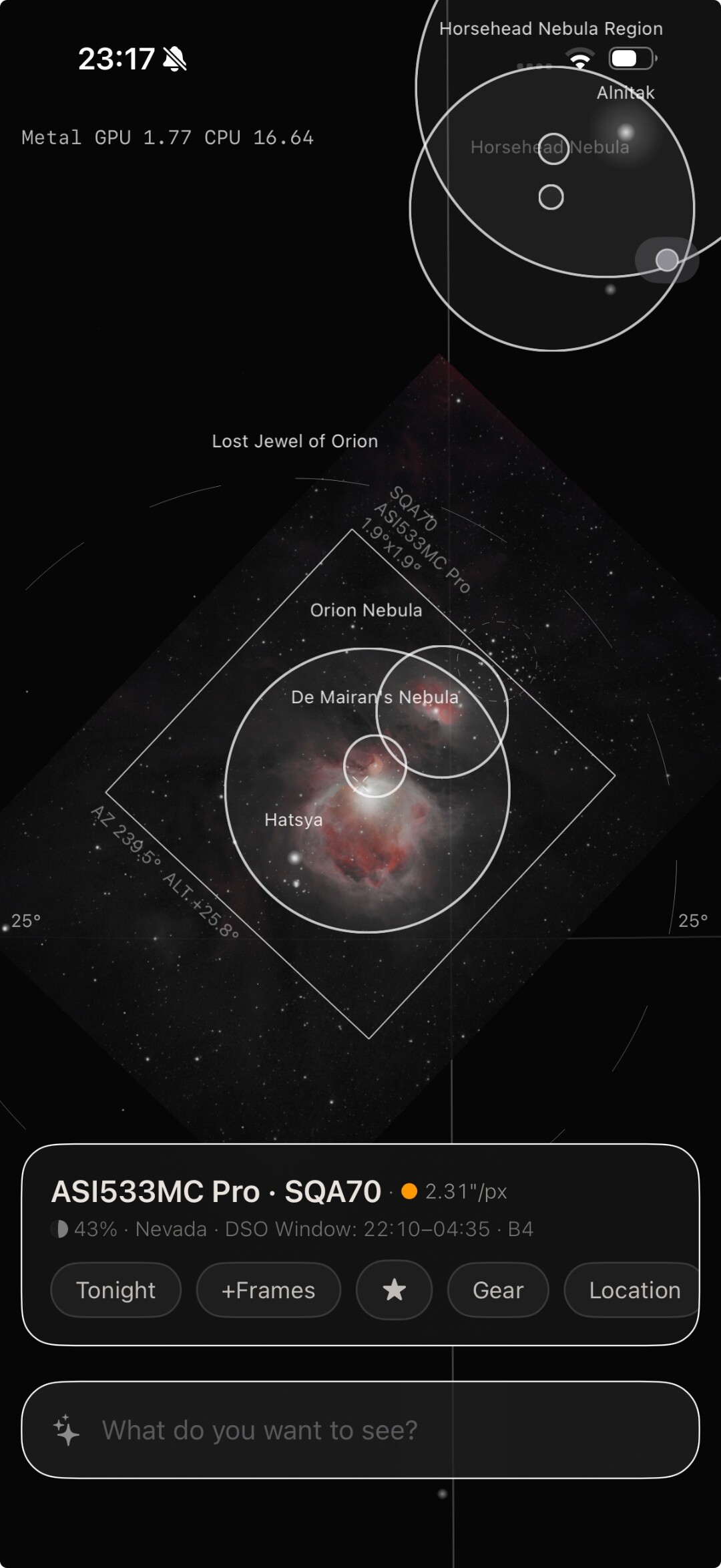

• Plate solving: plus button in the chat → pick a photo → solved via nova.astrometry.net (own free API key, asked once). The solved photo appears in the atlas.
• Memory: it remembers what you tell it (device + private iCloud only). Gear icon in the chat: view/delete notes, Send feedback, Clear chat history.

Data

Deep-sky catalog — 8,797 objects:

One object often carries several designations, so the rows overlap.

By type: 6,158 galaxies · 875 clusters · 681 emission nebulae · 218 dark nebulae · 185 supernova remnants · 148 reflection nebulae · 149 planetary nebulae · 383 asterisms, star clouds and historic catalog stars.

Stars: ~12 million, down to magnitude 14 — every one tappable · 379 proper names · 3,120 variables with event prediction + 57,852 GCVS variables, searchable · 9,836 doubles · 67 carbon stars · 88 constellations, 752 figure lines.

Backup: everything you create is mirrored to your private iCloud. No account.

Languages: EN, DE, FR, ES, IT, PT.

Sources: HYG/AT-HYG (CC BY-SA), ESA Gaia DR3, Washington Double Star Catalog, GCVS, IAU/Sky & Telescope figures (CC BY 4.0), IAU boundaries via VizieR, Milky Way imagery NASA/SVS, orbits from JPL, MPC, Celestrak. Full credits in the Location panel.

FAQ

Last updated: 25 August 2026

What is +Frames?

+Frames is an iOS app for planning deep-sky astrophotography and visual observing. It combines a GPU-rendered star atlas with 8,797 deep-sky objects and a deep star layer of roughly 12 million stars, a nightly target ranking that scores every object for your equipment, location and sky, a true field-of-view preview for your camera or eyepiece, session and project tracking, an AR finder that shows where a target sits in your real sky, plate solving that places your own photos on the atlas, and an AI assistant that answers your astrophotography questions, explains any object and adds your gear in plain language.

What do I need to run it?

An iPhone running iOS 18 or newer. No account, no sign-up — your data stays on your device.

How do I get +Frames?

+Frames is available on the App Store for iPhone. Download it and start the free trial, and if you have questions or feedback, email support@plus-frames.com or send feedback right from the app.

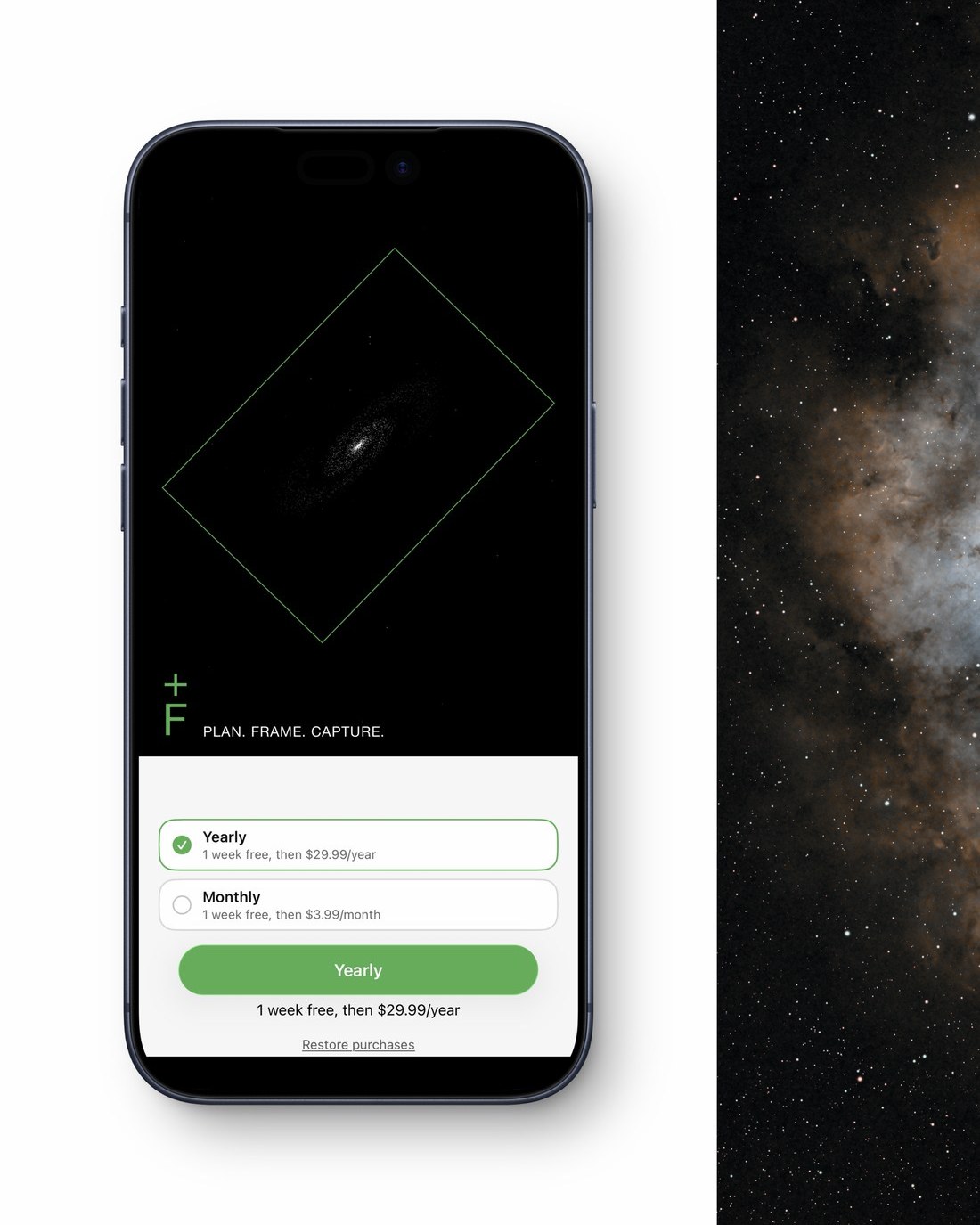

What does it cost?

+Frames Premium is a single subscription that unlocks the whole app: USD 3.99 per month or USD 29.99 per year, each starting with a 7-day free trial. Prices in your region and currency follow Apple's regional pricing and are shown before you confirm. Billing, renewal and cancellation are handled by Apple through your Apple Account — see the Terms of Use for details.

Are there usage limits for the AI features?

Yes, fair-use limits apply per device and month so the service stays fast and affordable for everyone. Equipment lookups that are answered from the app's built-in equipment catalog — a large, growing dataset covering cameras, telescopes and accessories from many manufacturers — are instant, free and do not count towards any limit. Only requests that need live AI research or chat count. The limits are set as fair use: normal use will not run into them, and they can be adjusted over time.

Can the AI be wrong?

Yes. Equipment data, explanations and other AI-generated answers can be inaccurate or incomplete. +Frames verifies common equipment against its built-in catalog, but always double-check critical specifications before you rely on them.

How does plate solving work?

Plate solving uses the free service at nova.astrometry.net. You need your own free API key (available after a quick sign-up on their site); the app asks for it the first time you solve an image. Solving time depends on the server queue — usually well under a minute, sometimes a few minutes at busy times.

Does +Frames work offline?

The atlas, your gear, your projects and the planning tools work offline. Internet is needed for the AI assistant, plate solving and the initial download of object images.

Where can I learn about privacy?

See the Privacy Policy. In short: no account, no tracking, no ads. AI requests are processed through our server without personal identifiers beyond what is technically required.

Something is broken — where do I report it?

Send feedback right from the app — open the chat settings (gear icon) and tap the feedback option — or email support@plus-frames.com. Both are very welcome.
